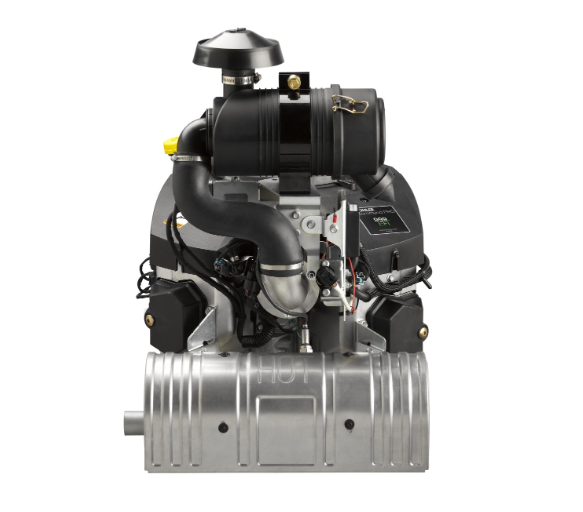

Product Description
Engine Type
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block, electronic fuel injection
Model
ECV940
Displacement
cm3 (in3)
999 (61)
Bore
mm (in)
90 (3.5)
Stroke in (mm)
mm (in)
78.5 (3.1)
Maximum Torque
Nm (lb-ft)
69 (50.9)@3200RPM
Dry Weight
kg (lbs)
57 (127)
Oil Capacity
L (US qt)
2 (2.1)
Engine Type
Commercial
Compression Ratio
8.8:1
Lubrication
Full pressure w/full-flow filter
Dimensions L x W x H
mm (in)
640x484x470 (25.2x19x18.5)
1 Performances measured according to ISO 14396 without final intake and exhaust line.Actual engine performances may be affected by accessories (intake and exhaust line, charging , cooling fan, etc.), application, ambient operating conditions (temperature, humidity and altitute) and other factors.
Features
- More Power — the ETB electronically controls intake to maximize power during heavy loads
- Better Cut — maintains blade speed during heavy loads; no need to cut the same grass twice
- Hydraulic lifters mean zero maintenance on the valve train
- Easy routine maintenance and service
- Saves significantly on fuel, with less downtime for refueling*
- Advanced sensor technology allows engine to optimize performance by automatically adapting to operating conditions
Engine Uses
EQUIPMENT TYPES
This engine powers the following equipments
Blower
Concrete Saw
Concrete Trowel
Curber
Floor Buffer
Generator
Light Tower
Pump
Riding Mower
Stump Grinder
Welder
Wide-Area Walk-Behind
Wood Chipper
Zero-Turn Mower
